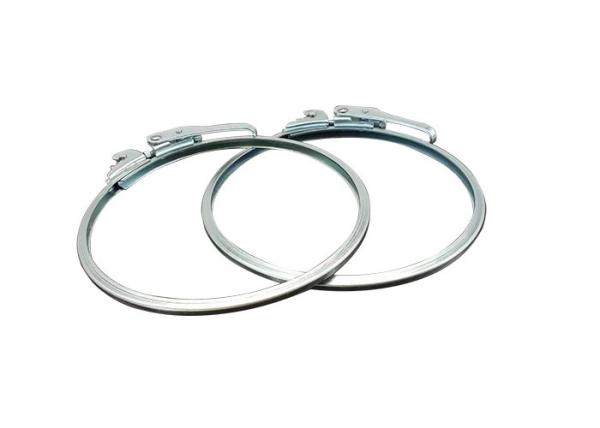

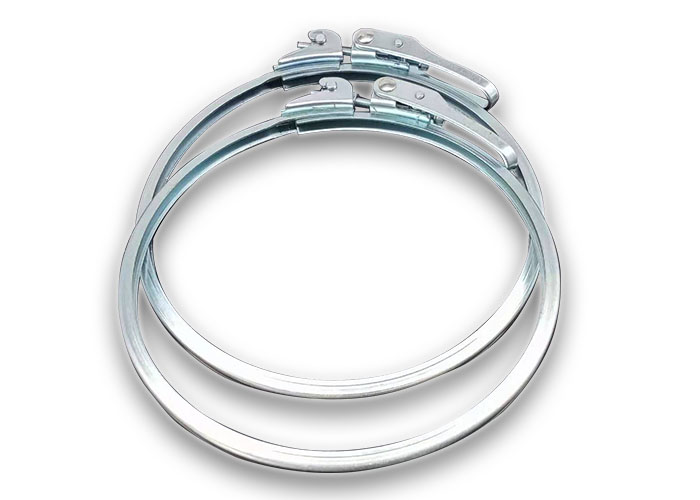

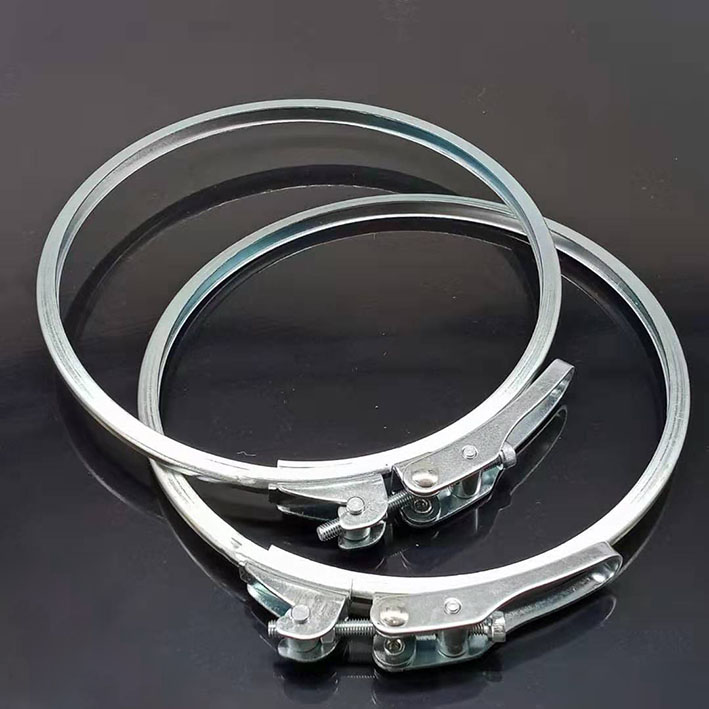

Metal Clamp Round Duct Clamp Quick Pipe Clamp Barrel Clamp Galvanized Pipe Clamp
Our product :
This pipe fitting clamp is commonly used in fixing and connecting flanged pipes. Simple operation and convenient use. Different materials can be selected according to different use environments.
Galvanized material or stainless steel 304 (customized production according to the order quantity). This model does not contain an independent sealing ring, and a sealing ring or sealant can be configured according to different usage environments.
Please communicate with us in advance
Usage:
It is often used for flanging of ventilation and dust removal, heating and ventilation pipes, or fixed connection of flange pipes. Commonly used in petroleum, chemical industry, construction, shipbuilding, factory workshop, food processing, supermarket, gymnasium, equipment pipeline and other fields.
Product Features:
1. Lightweight and cheap.
2. Easy to install
3. Our factory can customize non-standard sizes
4. Excellent material and preferential price
5. We can provide OEM/ODM service.
6. It is used to connect the ventilation pipe with a thickness of 0.8 mm.
Product Parament:
| ɸD | PRODUCT CODE | Width | Thickness |
| mm | mm | mm |
| 80 | BMG80 | 10 | 0.8 |
| 100 | BMG100 | 10 | 0.8 |
| 120 | BMG120 | 10 | 0.8 |
| 125 | BMG125 | 10 | 0.8 |
| 140 | BMG140 | 10 | 0.8 |
| 150 | BMG150 | 10 | 0.8 |
| 160 | BMG160 | 10 | 0.8 |
| 180 | BMG180 | 10 | 0.8 |
| 200 | BMG200 | 10 | 0.8 |
| 225 | BMG225 | 10 | 0.8 |
| 250 | BMG250 | 10 | 0.8 |
| 275 | BMG275 | 10 | 0.8 |
| 300 | BMG300 | 10 | 0.8 |
| 315 | BMG315 | 10 | 1 |
| 350 | BMG350 | 10 | 1 |
| 400 | BMG400 | 10 | 1 |
