160mm Galvanized Pipe Clamp Split Ring Bolt Hanger Hoop

Brand Name : WD

Model Number : Standard

Place of Origin : China

MOQ : 300 PCS

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 3000-8000 per month

Delivery Time : 10-35 days According yuor order

Packaging Details : standard package wooden cases or cartons or as client`s request.

Product name : 160MM Split Ring Bolt Pipe Clamp , Galvanized Pipe Clamp Hanger Hoop

Condition : New

Item : Fittings & Pipes

Type : Pipe Clips

Width : 28 mm

Thinckness : 2.0 mm or 3.0 mm

OEM : YES

Payment : T/T, L/C

Contact Now

160MM Split Ring Bolt Pipe Clamp , Galvanized Pipe Clamp Hanger Hoop

1. Product Introduction :

We choose the steel with high price and carry out cold galvanizing (electroplating) treatment on the surface. It can increase the service life and save the cost. Try to avoid long-term existence in the humid and hot environment with acid and alkali.

Rivet and connect the support pipe clamp. On the one hand, it makes the structure stable, on the other hand, it is convenient for disassembly and replacement. There is no padding inside. Nut connection for M8

2. Product selection

It is used for some pipeline works. The preferred material is zinc coating. If you have special requirements, please let us know in advance. Hot dip galvanizing can be selected for surface treatment, but there may be zinc slag on the surface of hot dip galvanizing. Firstly, it is not beautiful, and secondly, it will affect the accuracy of size.

Size	80mm - 400mm. Other specifications are customized according to the quantity
Wideness	28MM
Highness	71~231mm,there are highness for as per size.
Bolt nut	M8 OR M10 according you need
Manufacturing process	Deepdrawing and welding
Thickness	2.0mm or 3.0mm

ɸD	PRODUCT CODE	A	H	Thickness
mm	PRODUCT CODE	mm	mm	mm
80	DG80	28	71	2
100	DG100	28	81	2
120	DG120	28	91	2
125	DG125	28	94	2
140	DG140	28	101	2
150	DG150	28	106	2
160	DG160	28	111	2
180	DG180	28	121	2
200	DG200	28	131	2 or 3
225	DG225	28	144	2 or 3
250	DG250	28	156	2 or 3
275	DG275	28	169	2 or 3
300	DG300	28	181	2 or 3
350	DG350	28	206	2 or 3
400	DG400	28	231	2 or 3

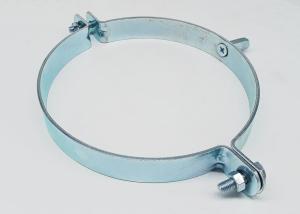

4. Product Picture :

160mm Galvanized Pipe Clamp Split Ring Bolt Hanger Hoop
