200mm Airtight Quick Release Galvanized Pipe Clamp

Brand Name : YP

Model Number : Standard

Certification : CE, ISO, SGS, UL

Place of Origin : HeBei

MOQ : negotiation

Price : negotiation

Supply Ability : 5000 pcs per month

Delivery Time : 15 -30days

Packaging Details : The wooden caseor carton box,maybe according your require.

Product name : Flange clamp

Washer material : EPDM or Silicone

Size : 100mm-600mm

OEM : we can provide

Clamp material : Galvanized steel

USED : Pipe connection

Color : Metal

Type : V slot clamp

Contact Now

200mm Connect Gaskets Connector Airtight Quick Release Galvanized Pipe Clamp

Product detail:

Unlike rolled lip duct where the gasket is in the clamp or even applied to the face of the lip, the pipe clamp v-shaped gasket encompasses the entire end! A high strength, torque-tightened clamp then surrounds the pipe and gasket and compresses the pipe together on the gasket.The EDPM Standard Seal for dust collection, non-corrosive and mist applications.

The O-ring is installed on one side flange pipe, and the other flange pipe is placed and matched in the same position. Clamp with quick clamp and tighten bolts with tool. The addition of the O-ring can greatly improve the sealing performance of the two pipe clamping.

product parament:

The size can be customized according to the needs of customers. Welcome to consult Amy.

model	size	material
YP20200	80	Galvanized Steel+EPDM
YP20201	100	Galvanized Steel+EPDM
YP20202	125	Galvanized Steel+EPDM
YP20203	140	Galvanized Steel+EPDM
YP20204	150	Galvanized Steel+EPDM
YP20205	160	Galvanized Steel+EPDM
YP20206	200	Galvanized Steel+EPDM
YP20207	250	Galvanized Steel+EPDM
YP20208	300	Galvanized Steel+EPDM

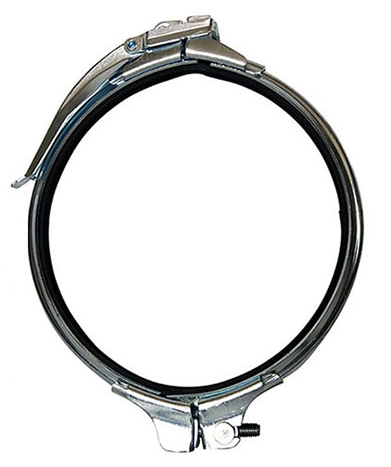

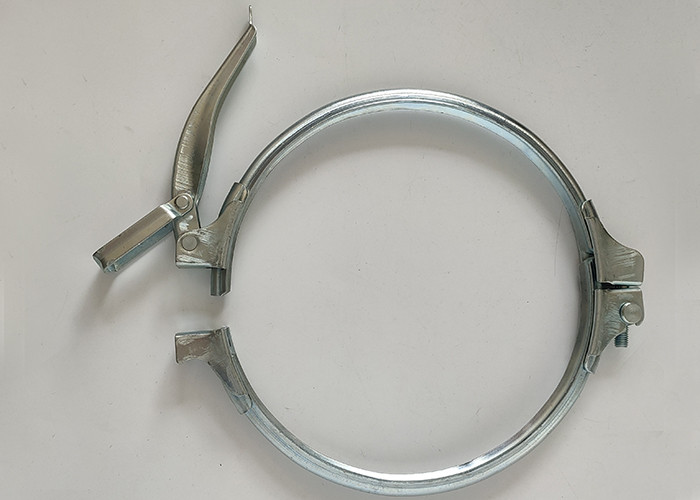

product picture:
