2.5 Inch Auto Spare Parts Exhaust Pipe System Flexible Bellows Stainless Material

Brand Name : YP

Model Number : YP19121102

Certification : ISO,CE

Place of Origin : Hebei Province

MOQ : 100 pieces

Price : can negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 pieces per month

Delivery Time : 15-20 days

Packaging Details : plastic bag+in carton+in pallet

name : 2.5 inch Exhaust Pipe System Flexible Bellows Stainless Steel Material

material : stainless steel201,304

length : any length

Diameter : 1.5"-4"

Packing : 25 pieces one carton

Function : generator, car exhaust system

Contact Now

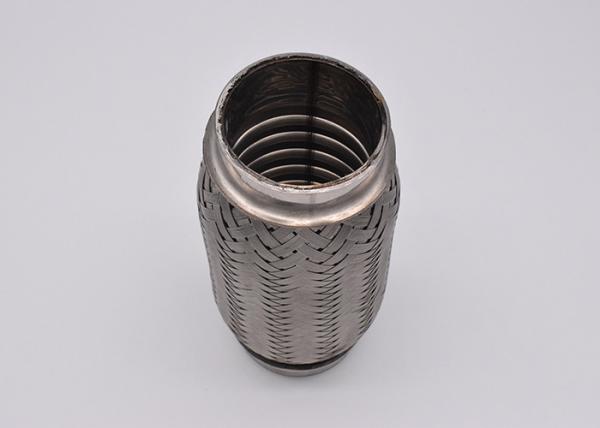

2.5 inch Exhaust Pipe System Flexible Bellows Stainless Steel Material

Introduction:

Flexible exhaust pipes are installed between exhaust manifold and muffler, so that the entire exhaust system is flexibly connected, thereby reducing vibration and noise, facilitating installation and extending the life of the exhaust muffler system.

Application: Can be used in the exhaust system of large vehicles such as cars, trucks, buses etc.

Types:

1. External braidflexible pipe: bellows +external braid +collar
2. Internal braid flexiblepipe : internal braid +bellows+externalbraid +cap
3. Interlock flexible pipe: interlock +bellows +externalbraid +cap
4. Nipple flexible pipe:internalbraid +bellows+externalbraid+cap +nipple

(Size, diameter and length can be produced as client's requirements)

Exhaust Flexible Pipe Specifications:

Inner Diameter (ID)	Length(L)	Inner Diameter (ID)	Length(L)
1-3/4” (45mm)	4”(102mm)	3”(76.2mm)	4”(102mm)
	6”(152mm)		6”(152mm)
	7”(178mm)		8”(203mm)
	8”(203mm)		10”(254mm)
	9”(230mm)		12”(305mm)
	10”(254mm)	42mm	120mm
	11”(280mm)		165mm
	12”(305mm)		180mm
2”(50.8mm)	4”(102mm)	50mm	120mm
	6”(152mm)	50mm	165mm
	7”(178mm)	55mm	120mm
	8”(203mm)		165mm
	9”(230mm)		180mm
	10”(254mm)		200mm
	11”(280mm)		250mm
	12”(305mm)	60mm	160mm
2-1/4”(57.2mm)	4”(102mm)		200mm
	6”(152mm)		240mm
	7”(178mm)	65mm	150mm
	8”(203mm)	65mm	200mm
	9”(230mm)	70mm	100mm
	10”(254mm)		120mm
	11”(280mm)		150mm
	12”(305mm)		200mm
2-1/2”(63.5mm)	4”(102mm)	Note: Customized size are available.
	6”(152mm)
	7”(178mm)
	8”(203mm)
	9”(230mm)
	10”(254mm)
	11”(280mm)
	12”(305mm)
